种类与简绍/Brief Introduction：

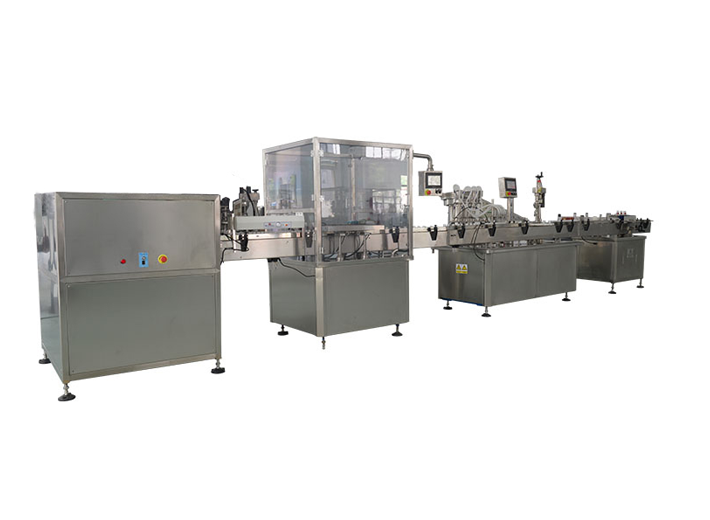

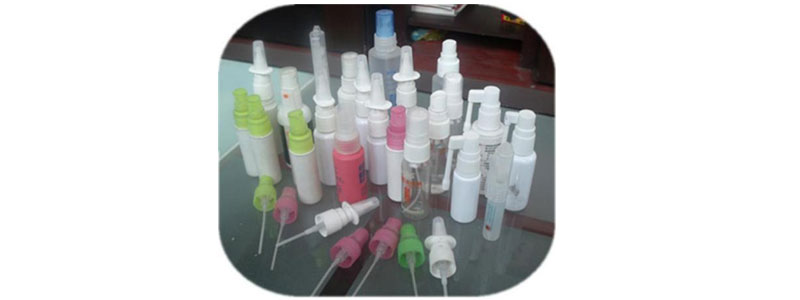

本产生线由全定时理瓶机、装罐旋（轧）盖机、立试标贴纸冷水机组成，可完工理瓶、装罐、旋（轧）盖、标贴纸打码软件等工作，一般用作喷剂剂稀硫酸的联线产生.常见采用作药厂、产品、化工相关行业等相关行业。完整适用GMP条件.This filling line is consisted of the Autpmatic Bottle Unscrambler,\Filling & Capping Machine and Vertical Labeling Machine. It can do Unscrambling bottle,filling,capping and labeling,be,mainly be used in the spray liquid filling production. Meet the GMP requirements.

特色/Characteristic：

◆理瓶机系创新设置，齐全改变手工艺，非常符合GMP制约。It’s a newly designed equipment, in place of handwork, comply with GMP standard.   ◆双曲线式或圆轮确定式罐装旋（轧）盖机操控快捷、罐装*、要选择区别的分娩的速度。Filling & Capping Machine with trait of precise metering, easy operation, and productivity is optional.◆直列V型标贴机应用PLC及步进直流电机管理直流电机管理，标贴*，速率高，有热打码软件。   Vertical Labeling Machine controlled by PLC and stepping motor, precise labeling, high efficiency, with hot Coding。

技木叁数/ Technical Parameters：

用于规格为Filling Volume	15-500ml
生产的效果Productivity	30-45瓶/分 𝓡60-80瓶/分 30-45🥂bottles/min 60-80bottles/min
分装控制精度Filling Precision	≤±1%
旋（轧）盖率Capping Rate	≥99%
交流电源 Power Supply	220V/50Hz
电功率Power	2.8 kw
制作线总长Dimension	7000*1000*1700mm
