妙用与详细资料：/Purpose and introduction

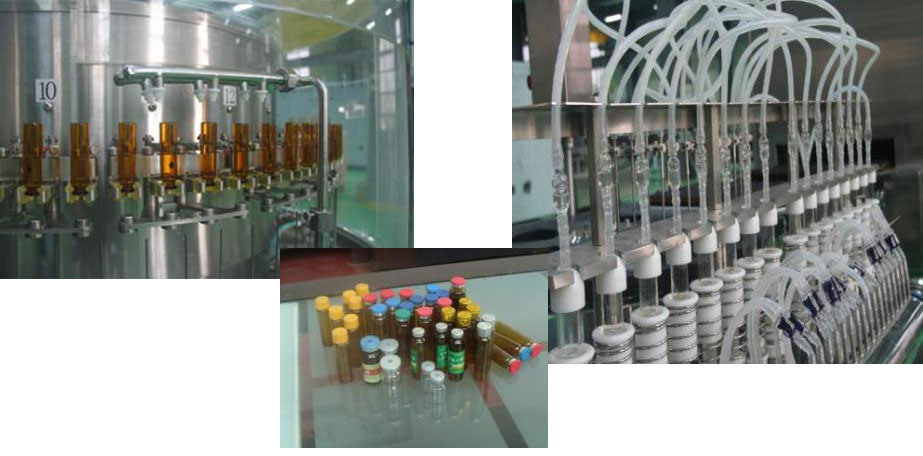

服食液洗烘灌轧一体化线由双面多普勒彩超波洗瓶机、隧道施工式自动空调 重复消毒烘干机箱、服食液包装轧盖机等組成，满足于 5-30ml 等不一样的规 格服食液瓶的制造。可结束对处方药制造中安瓿瓶淋水、多普勒彩超波的洗涤、冲水、充 气、烘干机消毒、冷却水、包装、轧盖等工序步数的一体化自动运行。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

共同点:/characteristic

◆洗瓶机用于物理手夹瓶，应用各种尺寸的塑料瓶子；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶选择水雾喷针往复运动追综放入玩法，洗涤感觉好，避免浪费绿色能源。并不设针架防会抖试验装置，增长喷针放入矿泉水瓶的最准确性，减掉断针毛细现象再次发生；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶这个雾气输送管、喷针压根人格独立分开用，防止了穿插环境污染，满足GMP规定让；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶罗杆前加装有确保块，有确保罗杆，削减碎瓶做用Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶用整体布局原产关联带，相连接拨块运输内服液，启用稳定性高稳定In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆烤箱适用红外线热处理加导散热器，不透钢热处理加导散热器多层热处理烧水环境温度均匀的性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆分装轧盖机可以配陶瓷制品泵、不锈钢板泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆装罐无瓶止灌，无瓶不轧盖技能。Pieces filling without bottle filling, no bottle no rolling function.◆整线按照PLC总管理、直流变频空调器、触模屏管理水平，运营不稳耐用。触模屏可凸显各单机游戏的运营环境，各管理点的静水压、空气压力、风压气压、环境温度等凸显，各旋转开关环境和错误凸显，错误自主评估和错误具体分析及判定策略。使整块种植流程完成自然化管理，联线更具三机测控平衡量传动装置，保持种植营养均衡耐用。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.依据用户的需，还可供选购：According to the needs of customers, but also available for selection:◆PLC、施耐德开关、西门子、台达等国际品牌掌握软件；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气水压、水温表及超超声波仪器波強度、颗粒阿尔法粒子、风速等级在线上论文检测、报警声音、计录、网页打印设计。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、无菌检测底部隔离器操作系统。Mixer ORABS, CRABS, aseptic isolator system.

科技参数表：technical parameters

采用尺寸规格Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
装灌的精密度Filling accuracy(%)	≤ ± 2.5
装灌头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖通过率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
