用处与简单/Brief Introduction：

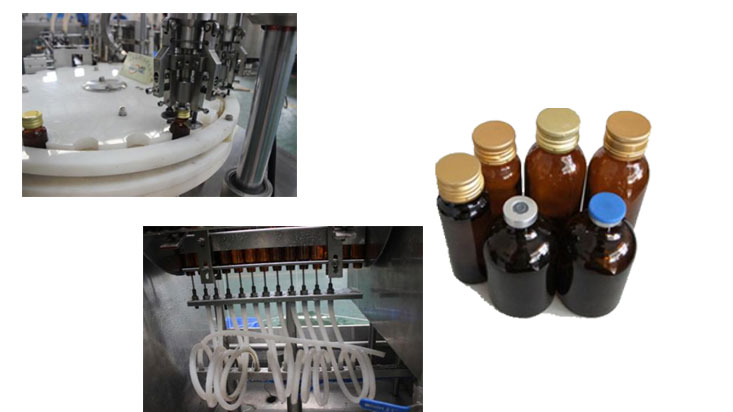

本产生线适宜30ML这些口服药液的装灌产生，由供瓶机、滚简洗瓶机、垂线式装灌轧（旋）盖机、立柱式标贴纸机等设配包含，可全智能齐全理瓶、洗瓶、装灌、上盖、旋（轧）盖、标贴纸等加工过程。一般广泛用于医药煤化工、食物、煤化工的的各个液滴原料的装灌联动性产生。本产生线齐全非常符合GMP符合要求。This production line is suitable for more than 30 ml of oral liquid filling production, by for bottle filling machine, roller bottle washing machine, straight-line rolling (spin) cover machine, vertical labeling machine and other equipment, can finish automatically unscramble bottle, bottle washing, filling and cover, cover and label (pad). Mainly used in pharmaceutical, food, chemical industry production of all kinds of liquid filling material of the linkage of. This production line in full compliance with GMP requirements.

作用 /Characteristic：

◆表皮质量为304不锈钢圆管装饰管吗，灌装线一小部分采316L不锈钢圆管装饰管吗，符合要求GMP规定。Outer material is 304 stainless steel,and the material of filling part is 316L stainless steel, it complies with GMP regulation ◆可融入多样式工作。can be situable for several bottle specs.◆进行比较稳定，嗡嗡声小，包装准确度 。Stable running,low noise,precise filling.◆破瓶率低，原材料不达标率高，能效少。low bottle breakage ratio,high qualified product ratio,low energy consumption.◆整套分娩线可手机单机控住和连锁加盟控住。The whole line can single machine control or interlock control.

技艺性能指标/Main Technical Parameters：

实用外形尺寸Filling Volume	30-150ML
罐装头数Productivity	低速档4头        ജ      高速路8头 4 at low speed         &nbs🌃p;   high speed 8
制造力量	低速度30-50瓶/分     速度70-100瓶/分 30-50bottles/min  70-100bottles/min
分装导致精度Filling Precision	≤±1%
旋盖率Capping Rate	≥99%
供电Power Supply	220V/50Hz
耗油率Power Supply	2.5kw
出产线总长Dimension	7500*1000*1700MM
